Rack engineering methodology

AI Rack Integration & Qualification

An integrated AI rack requires coordinated decisions across compute, networking, storage, management, power and cooling. SIDERA defines these interfaces and the associated acceptance criteria for each project.

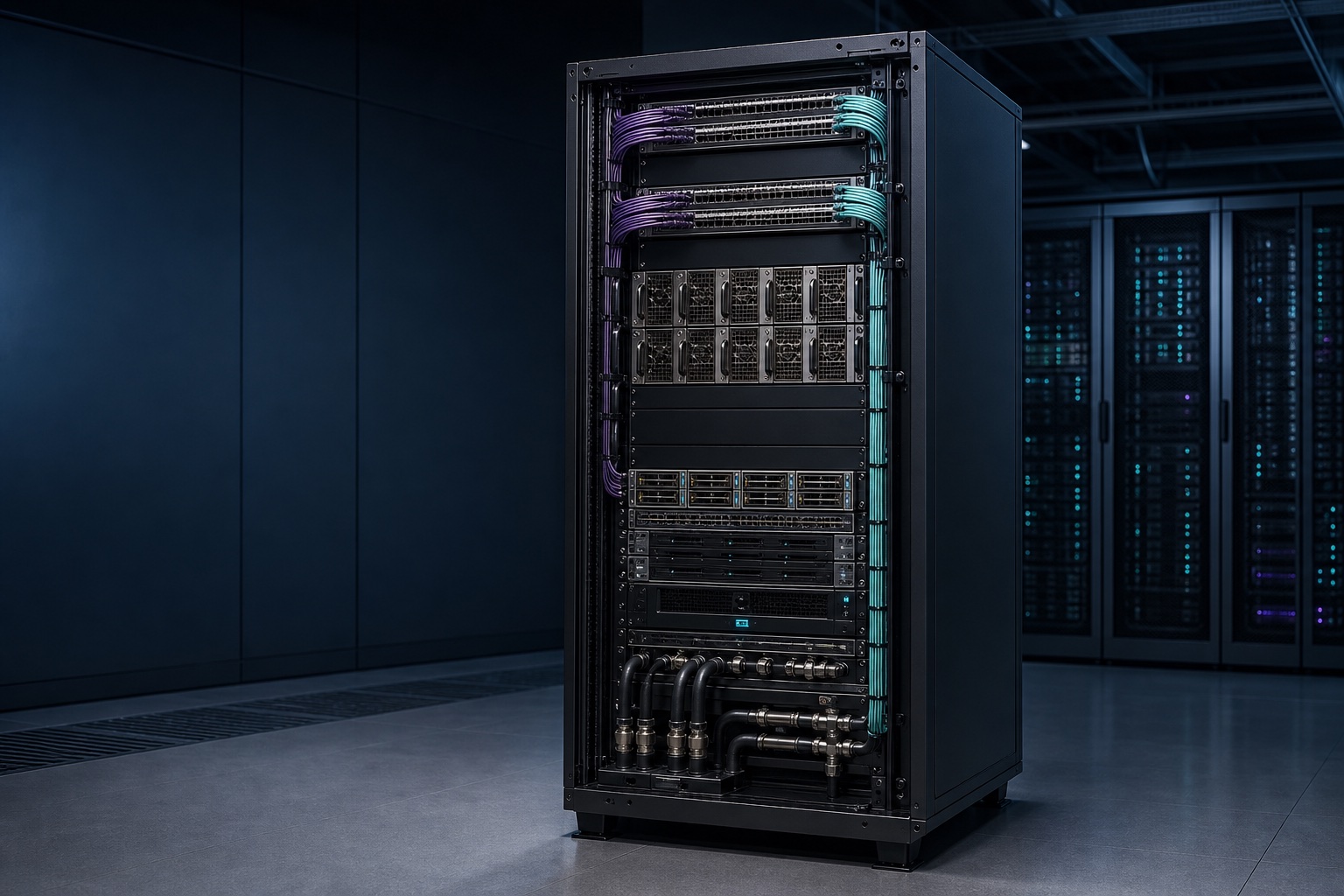

Integrated AI infrastructure rack with compute, networking, storage, power and liquid cooling
INTEGRATED AI RACKCompute · Fabric · Data · Power

Project-defined architecture with agreed qualification and support scope.

System, not a parts list

Designed around the workload and the facility.

AI infrastructure succeeds when the compute, network, storage, power and thermal design are treated as interdependent constraints.

SIDERA’s concept begins with the workload profile and site envelope, then defines a balanced rack configuration, test plan, delivery model and support scope. Specific components and performance targets are confirmed during engineering—not assumed in advance.

Five engineering decisions

Every interface needs an owner.

The project proposal defines which activities are performed and how acceptance is established.

01

Architecture definition

Establish the workload, system objectives, network domains and facility envelope.

02

Component selection

Select compute, networking, storage, management and thermal components for the proposed configuration.

03

Software & network qualification

Check the selected software stack, topology and applicable vendor support conditions.

04

Integration planning

Define assembly location, cabling, configuration, documentation and responsibility boundaries.

05

Acceptance & lifecycle

Agree test coverage, delivery conditions, warranty administration and escalation routes.

Configuration envelope

Define the configuration envelope before integration.

The reference architecture is a starting point for a larger infrastructure plan. It can be evaluated for enterprise inference, model development, research, HPC and AI service requirements where supported.

DESIGN DOMAINPROJECT OPTIONS
WorkloadTraining · Fine-tuning · Inference · HPC
AcceleratorsVendor and generation selected per project
FabricNetwork domains, interface speed and topology selected per project
StorageLocal NVMe · parallel · scale-out · object
CoolingAir · direct liquid · facility-ready interface
ValidationComponent · rack · fabric · workload acceptance

Delivery pathway

Define acceptance before delivery.

Scope, integration, testing and support are defined as one delivery plan.

01
Requirements

Discover

Workload, topology, facility and operations requirements.

02
System design

Architect

Balanced bill of materials, fabric and thermal design.

03
Build & configure

Integrate

Rack assembly, cabling, configuration and documentation.

04
Acceptance

Validate

System, fabric and workload-focused acceptance testing.

05
Lifecycle

Deliver & hand over

Contracted commissioning, documentation, knowledge transfer and escalation scope.

Concept status

SIDERA designs and builds each integrated AI rack as a project-specific system. Final configurations, component availability, certifications and performance commitments are established for each customer project.

Integrated infrastructure

Bring the workload, site constraints and deployment target.

Request an architecture review

Product selection · Configuration review · Project-defined scope
